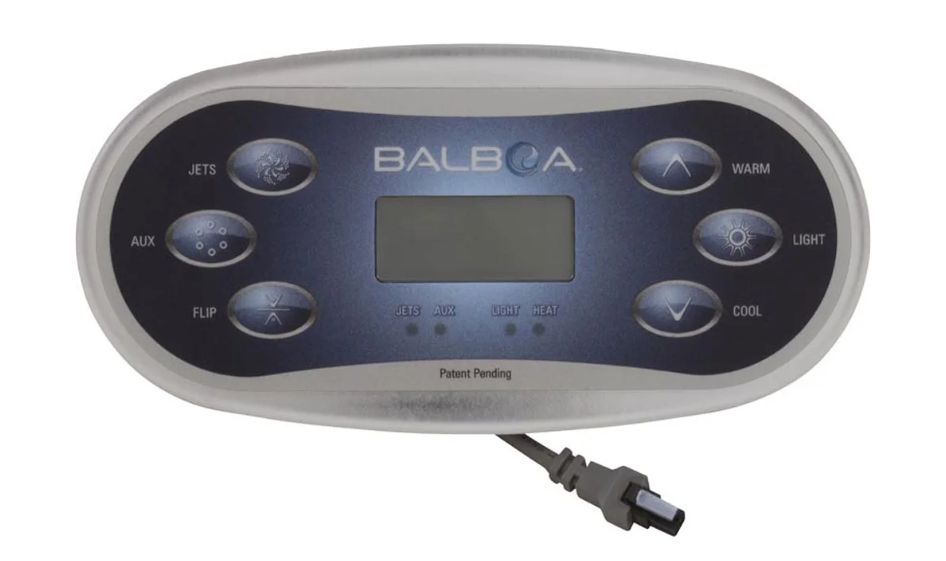

TP600 Topside Control Panel (Overlay Sold Separately)
SKU 55676-14
$198.92
Evergreen, Lite, XS, Divine, Birch Bay 2014-Current, Northwest 2014-2021
In stock: 4 available
Product Details
Brand: Balboa
Replacement Topside 6 Button Control Panel
Used in 2014-2024 Evergreen, Northwest (2014-2021), Lite Series, XS series, Divine, and Birch Bay models with CL501X1 (SKU: 56563-01 through SKU: 56563-05) control systems. Also used in select 2024 Starlight models. Compatible with BP20P4BC (SKU: 56698-02) and BP21P4BC (SKU: 56627-03) control systems. In systems using this control panel that have 4 pumps, the cool or temp down button will operate pump 4.
- 4 pin connection.
- Dimensions: L: 7.125", H: 3.5"
- Hole Size: L: 3.4" Between Two 2.5" Hole Saw Cutouts
Overlays:
- Clearwater 1 Pump: SKU 12891
- Clearwater 2 Pump: SKU 12890
- Clearwater 3 Pump: SKU 12925
- Birch Bay 1 Pump: SKU 12898
- Birch Bay 2 Pump: SKU 12899
- Birch Bay 3 Pump: SKU 12926
- Divine 2 Pump: SKU 12892
- Divine 3 Pump: SKU 12927
- Balboa 1 Pump: SKU 13635
- Balboa 2 Pump: SKU 12198
(Overlays for this control panel should not have a "mode" button on the right side.)
