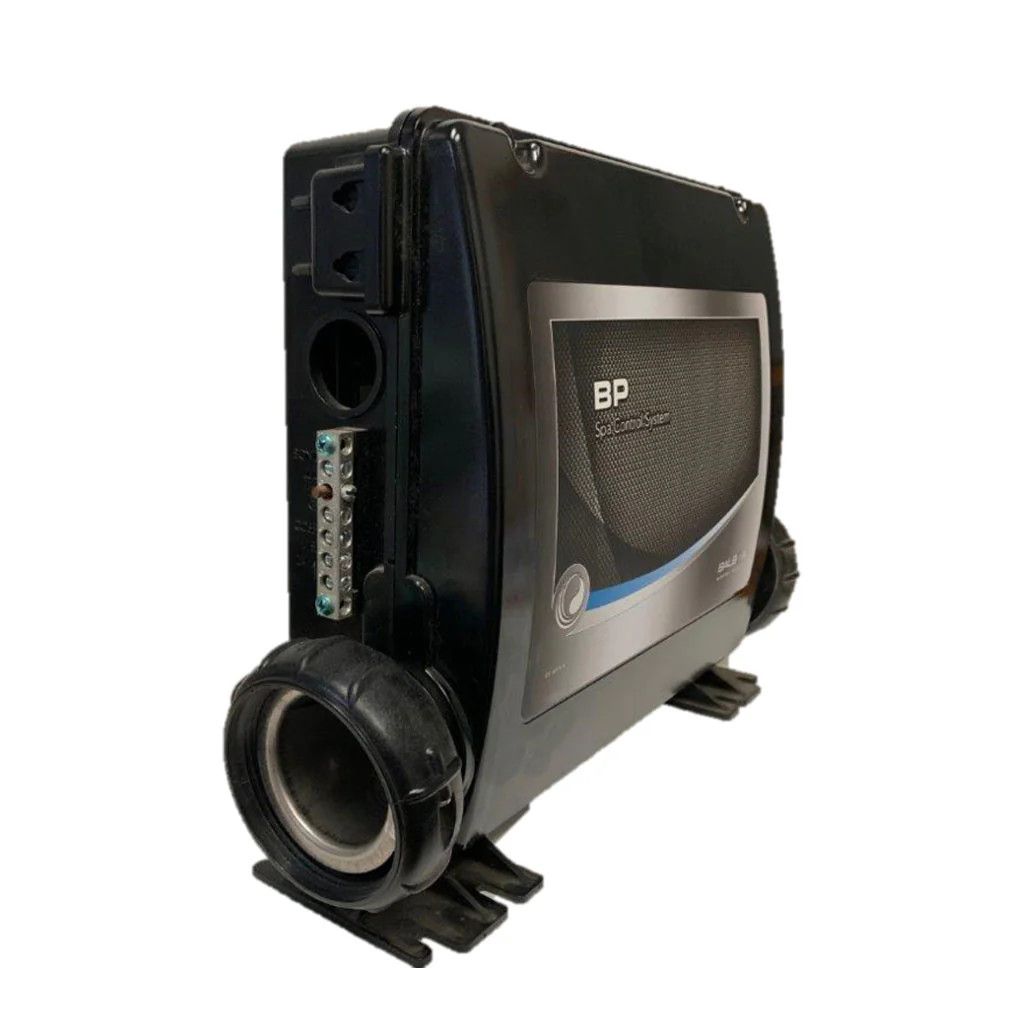

Control System BP20P4BC

BP Pack with 5.5kw Titanium Heater

Control system BP20P4BC used in 2014-Current domestic Resort series 4 pump models. Replaces (SKU: 56698-01). Works with most Spa Touch and TP control panels (TP950: SKU 50584-05, TP800: SKU 50408-06, TP700: SKU 57278-02, TP600: SKU 55676-14, Spa Touch 2: SKU 57382, Spa Touch 3: SKU 57368).

• Power Requirements: 240VAC, 50/60Hz, 48A, Class A GFCI, Circuit Breaker 60A Max, 4 Wires Hot, Hot, Neutral, Ground.
• Dimensions: L: 16.9", W: 4.9", H: 11.8"
• Standard Dip Switch Settings: Resort models A4 up.

Replacement Parts and Wifi Upgrade:

• Wifi Capabilities with Control My Spa System (Sold Separately): SKU 59303
• Circuit Board Replacement: SKU 59544-01 (Replaces 56699-01)
• Heater Replacement: SKU 55624 (5.0kw)
• Temp Sensor Replacements: SKU 32016

Replacement fuses, functions, and locations:

(This control system may come wired for 120v circ pump applications. To wire for 240v ozone and circ pump application move the jumper wire from J79 in group 4 to J37 in group 2.)
