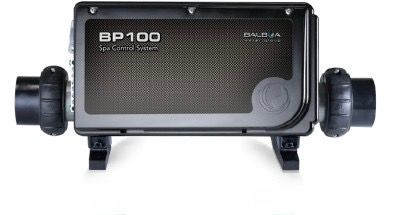

Control System BP100G2
SKU 59268-03
$676.64
In stock: 22 available
Product Details
Brand: Balboa
BP Pack with 4.0kw Incoloy Heater
Control system BP100G2 used in domestic Starlight 1 pump and 2 pump models Q4 2023-Current. Works with all Spa Touch and TP control panels (TP950: SKU 50584-05, TP800: SKU 50408-06, TP700: SKU 57278-02, TP600: SKU 55676-14, TP260: SKU 57335). 120v wall plug application for 1 pump setups only, in this setup the heater, circ, ozone, and pump 1 must run on 120v.
- Power Requirements: 240VAC, 50/60Hz, 48A, Class A GFCI, Circuit Breaker 60A Max, 4 Wires Hot, Hot, Neutral, Ground.
- Dimensions: L: 16.90", W: 6.46", H: 8.32"
- Dip Switch Settings: 1 Pump models: A2 up. 2 Pump models: A3 up.
120v Wall Plug Setup
- Power Requirements: 120/240VAC, 50/60Hz, 16/40A, Class A GFCI Wall Mount Breaker. (For setups 3 and 4 only.)
Replacement Parts and Wifi Upgrade:
- Wifi Capabilities with Control My Spa System (Sold Separately): SKU 59303
- Heater Replacement: SKU 58426R16 (4.0kw)
- Temp Sensor Replacements: SKU 32016
Replacement fuses and locations:
| Fuse Locations | Fuse SKU# | Amps |
| F6 | 30136 | 30A |
| F5 | 26983 | 1A |
| F4 | 26983 | 1A |
| F3 (When Using 240v Heater) | 24514 | 0.1A |
| F3 (When Using 120v Heater) | 26982 | 0.16A |
